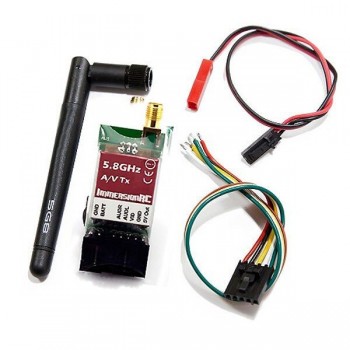

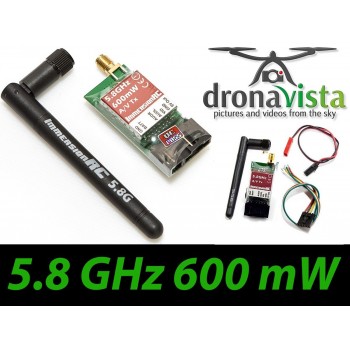

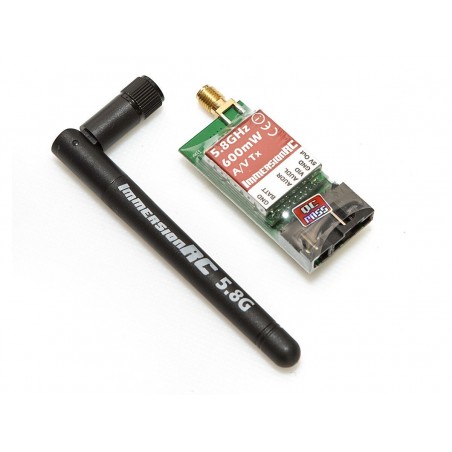

ImmersionRC 5.8GHz 600mw Audio / Video Transmitter
One of the most popular A/V transmitters in the FPV hobby. An efficient, lightweight (heatsink and fan-free) transmitter, which packs quite a punch.
Many A/V transmitters sold for FPV use have channels which fall outside of the legal bands (ISM, and Amateur Radio). The channel set used ImmersionRC and FatShark all fall within the legal bands, and will not raise the eyebrows of the authorities.
- 600mW (27.5dBm, +/- 1dBm) of clean output power
- SMA Antenna connector, with supplied 5.8GHz Rubber-duck antenna
- Frequencies: 5740, 5760, 5780, 5800, 5820, 5840, 5860MHz
- All Frequencies within legal bands (ISM + Ham Radio)
- Not affected by 2.4GHz R/C radios!
- May require a license to operate
Power Output: 28dBm (600mW)
RF Impedance: 50 ohms
Frequency, Band 1: 5740, 5760, 5780, 5800, 5820, 5840, 5860MHz
Audio: Stereo, Subcarriers on 6.0, and 6.5MHz
Modulation: FM, Audio and Video
Power Requirements: 2s-6s LiPo (6v – 25v)
Power Consumption: 3W
