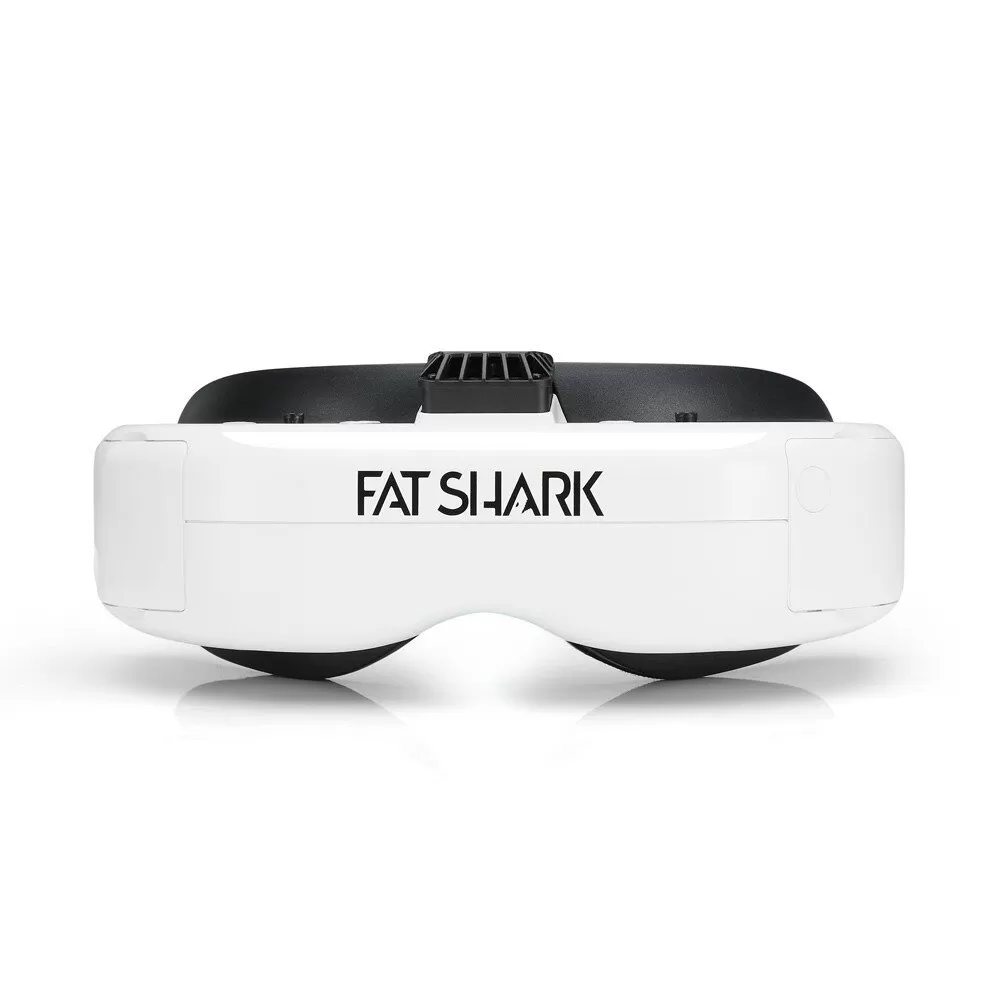

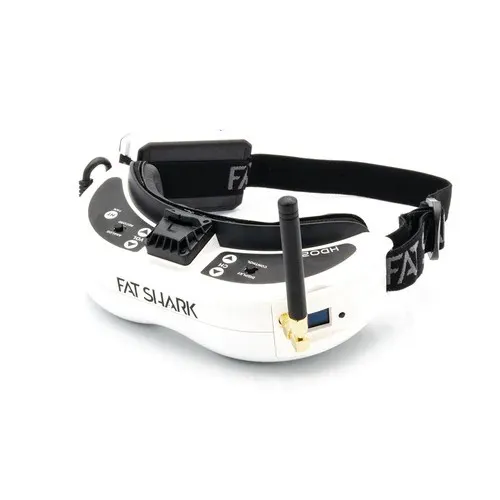

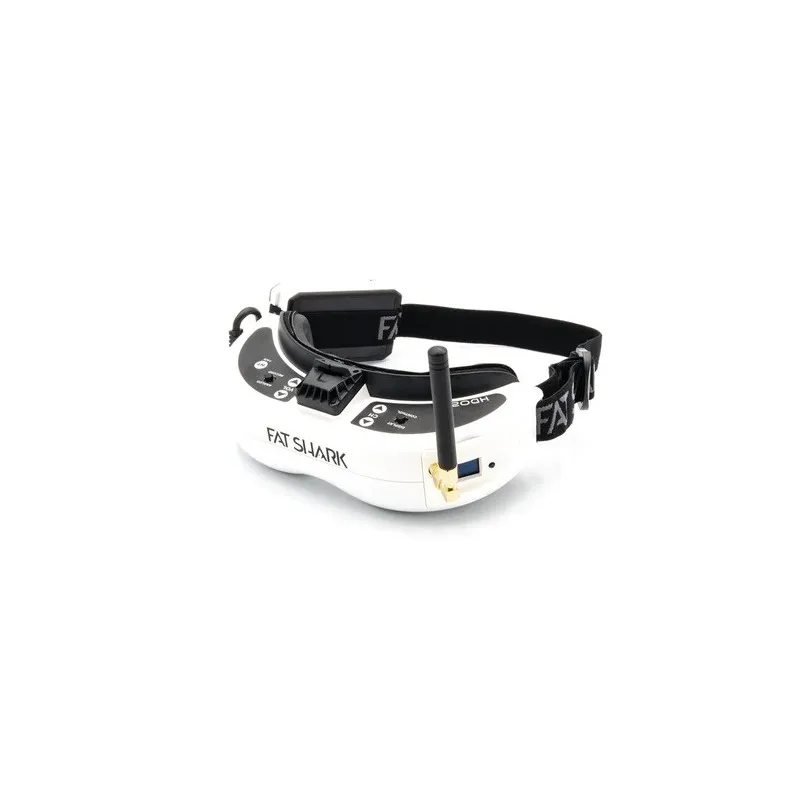

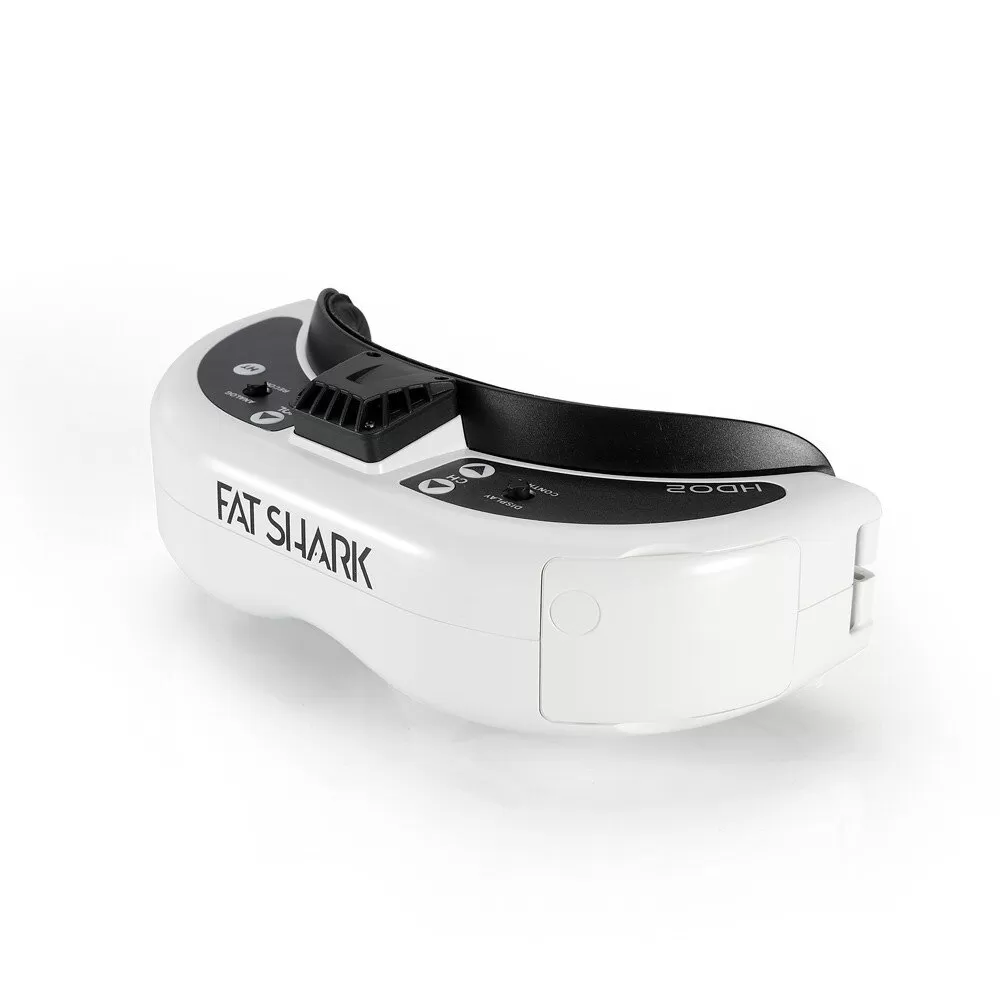

Fat Shark Dominator HDO 2.1 FPV Goggles with VRX Module

Fat Shark Dominator HDO 2.1

The Dominator HDO2 headset launches as the successor to the much-loved Dominator HDO. The HDO2 uses big 1280 x 960 OLED panels to provide a dramatically improved image with a 46-degree field of view. Display customization is now possible using a new OSD with expanded controls. The HDO2 can be further personalized with adjustable focus, adjustable IPD, adjustable face plate curvature, selectable image ratio, and a configurable power button. The HDO2 is the perfect headset for an experienced pilot looking for the best flight experience.

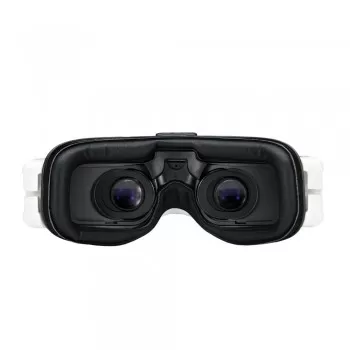

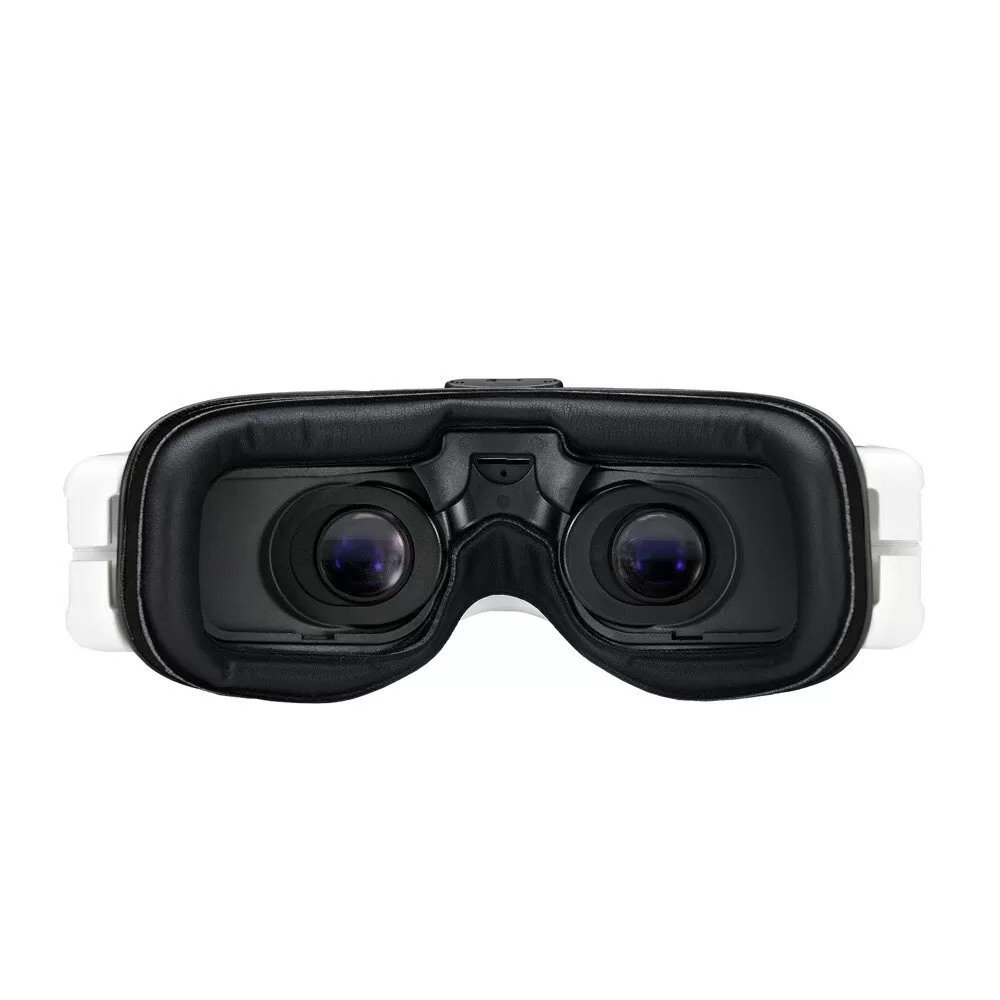

OPTICS

FOV (field of view): 46 degrees diagonal

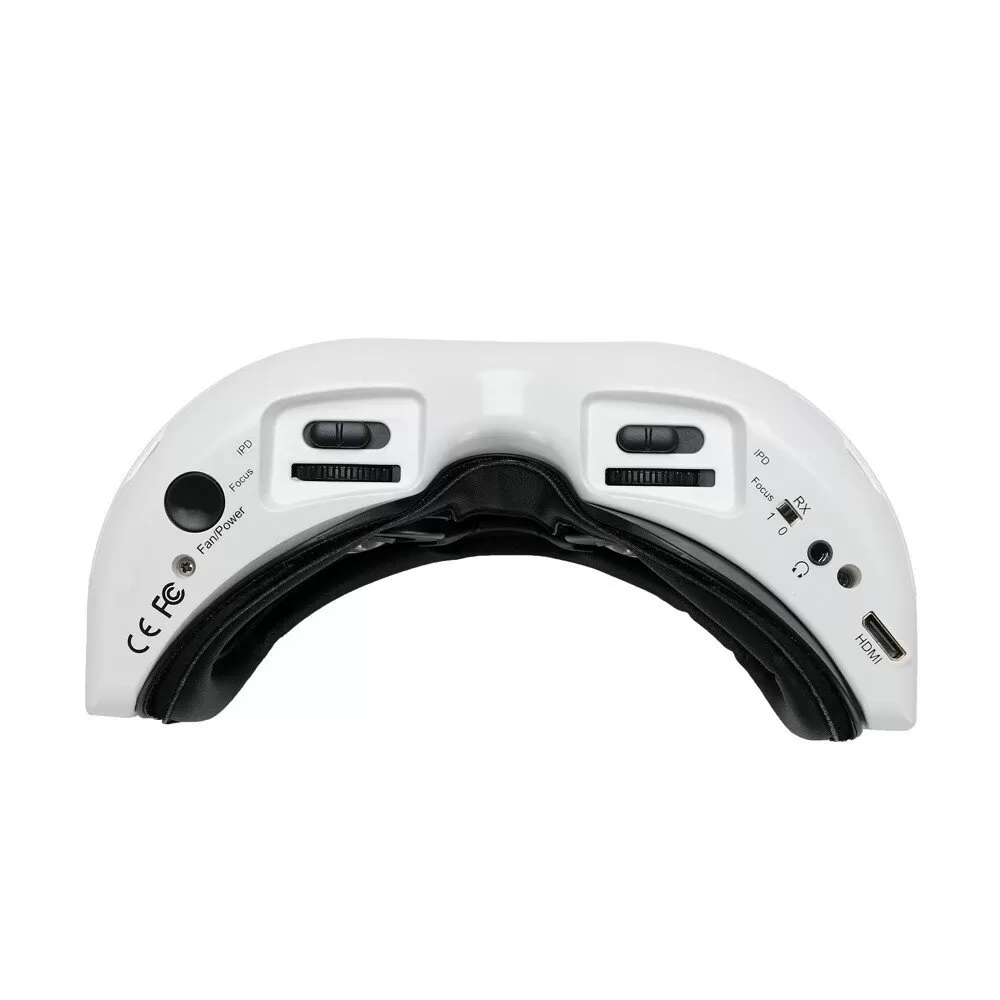

IPD (interpupillary distance): 54 to 74 mm (adjustable)
Focus: +2 to -6 diopters (adjustable)

DISPLAY

Two Sony 0.5” OLED displays
Resolution 1280 X 960
NTCS/PAL auto selecting
AV Mode 4:3
AV Mode 16:9
HDMI Mode 16:9

AUDIO

Stereo

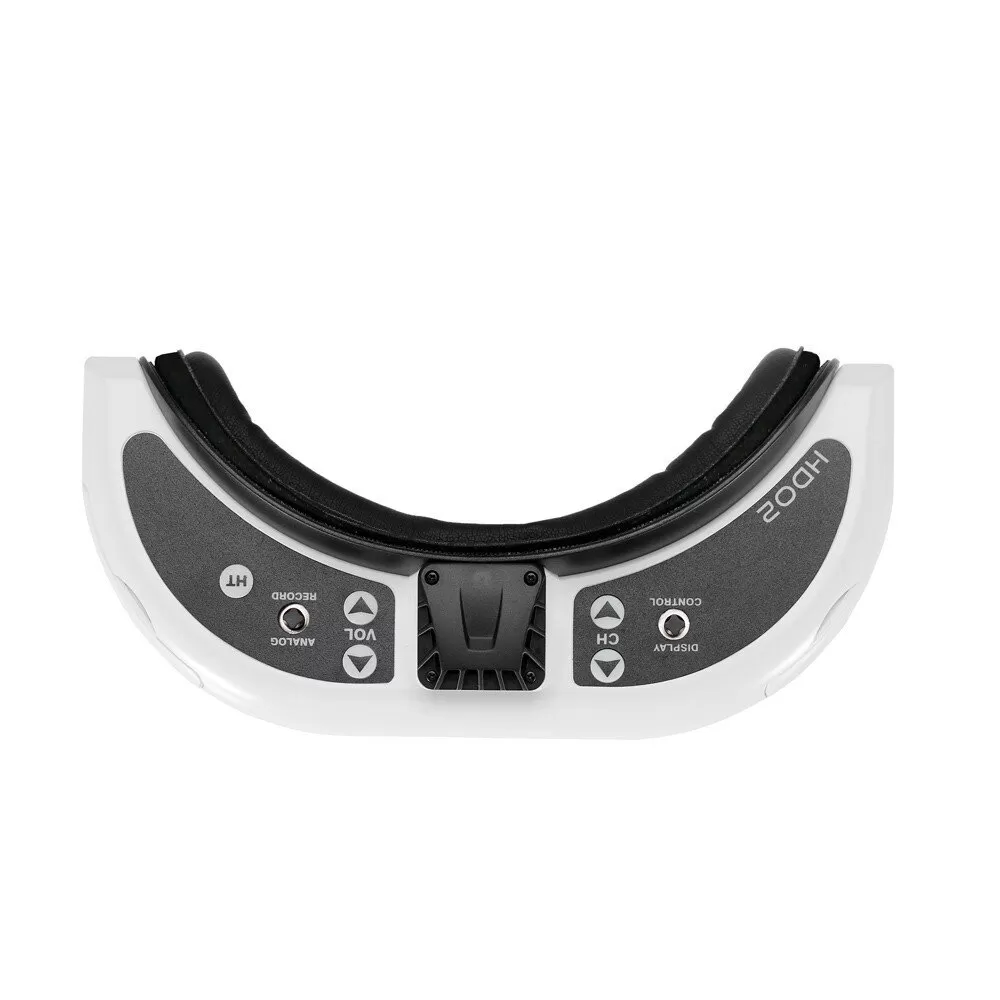

USER CONTROLS

Channel Selection
Volume Control
Mode Selection
Display Control (Brightness and Contrast)
DVR Control
Power Button / Fan Control

ELECTRICAL

Power Supply: 7 – 13V input voltage (2S – 3S Supply)
Power Consumption: 320mA @ 7.5V input power (no RX module)
770mA @ 7.5V input power (Rapid
Analog DVR: MicroSD support to 32 GB
Record Rate: 6Mbps (MJPG compression, 30 fps, AVI)
File playback (native recording, no codec support)
Upgradeable via SD card

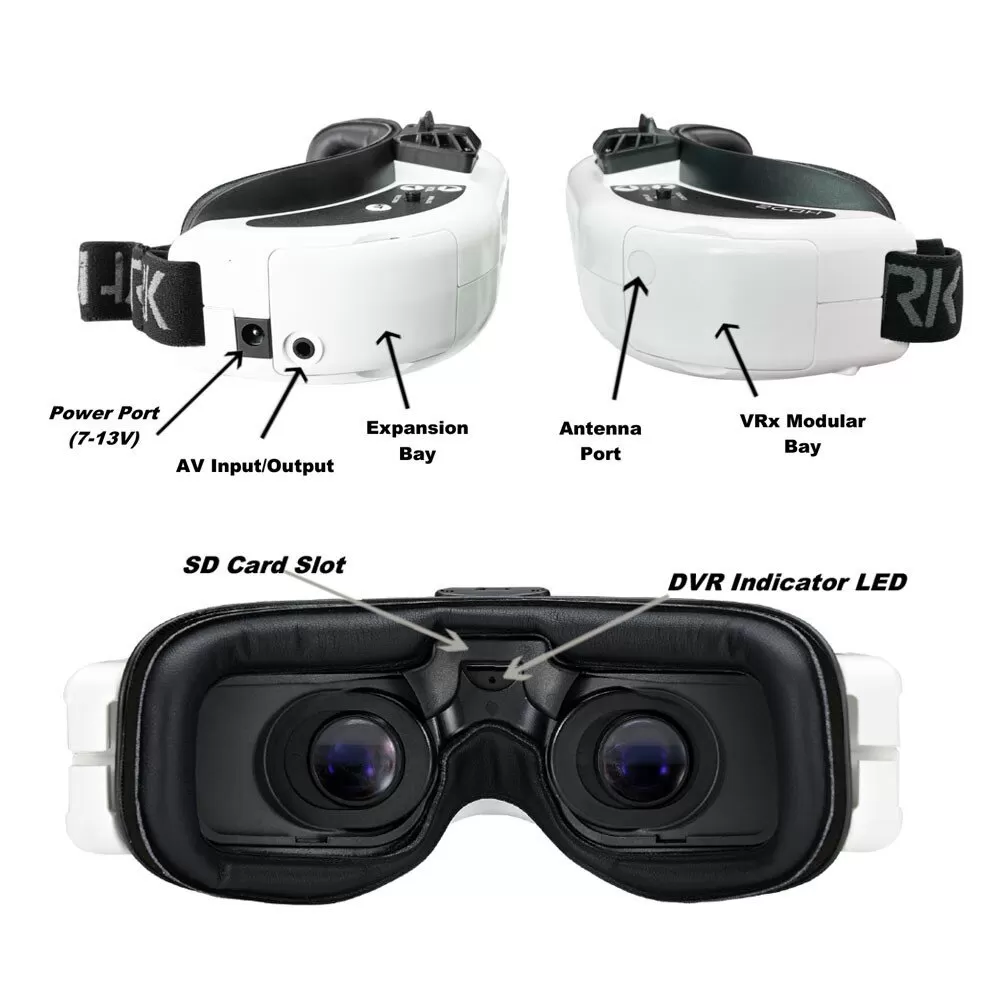

INTERFACE

3.5mm AV in/out port
Power input port
3.5mm 3p earphone port
MicroSD

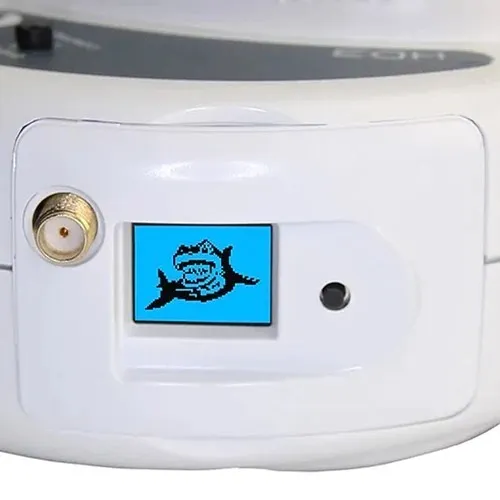

RF Module Bay
HT connector 3 pin internal connection
Power Button

MECHANICAL

Ergonomic molded headset w/ adjustable headband
Dimensions: 169.2 x 80 x 45.5 mm
Weight: 206.8 g

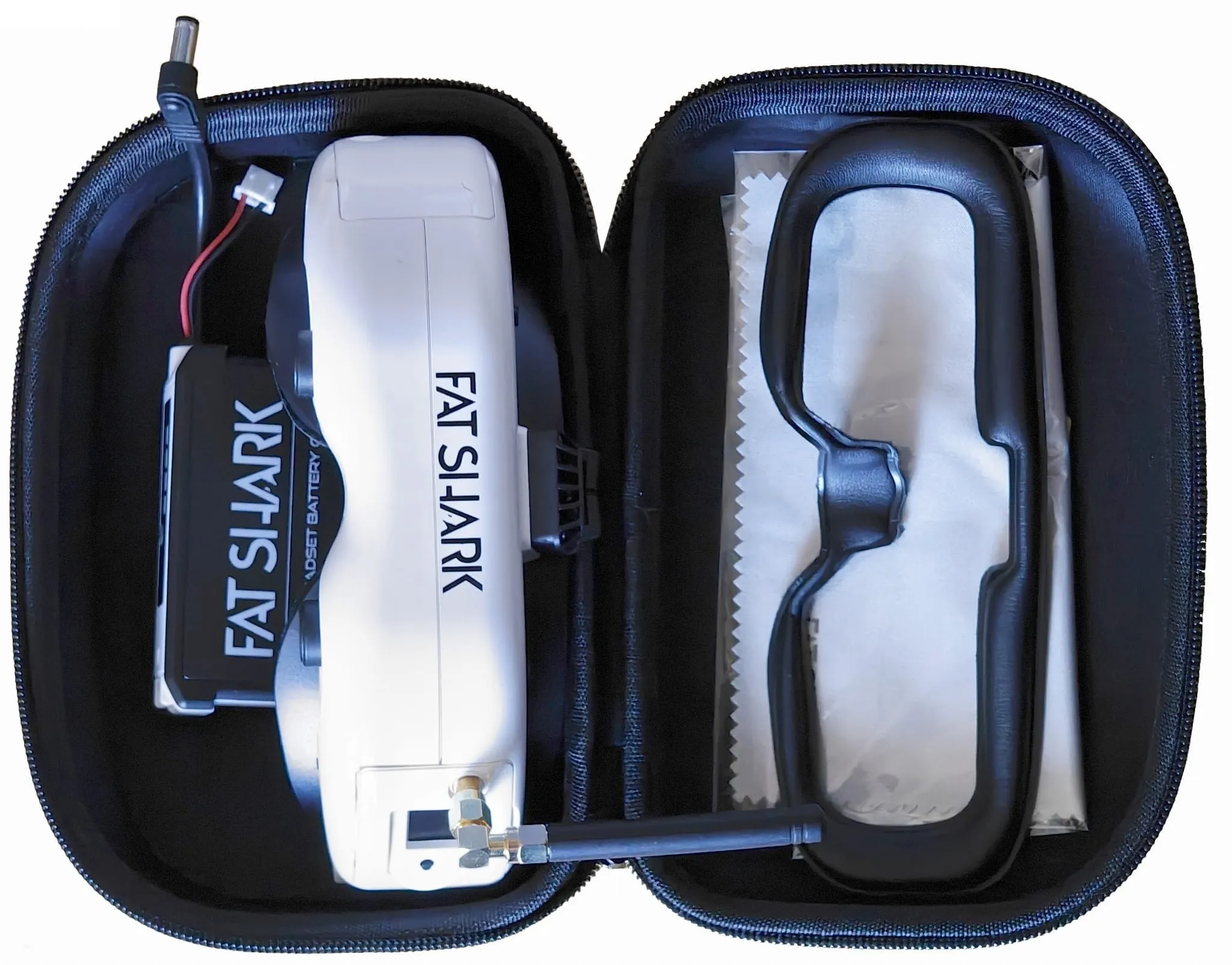

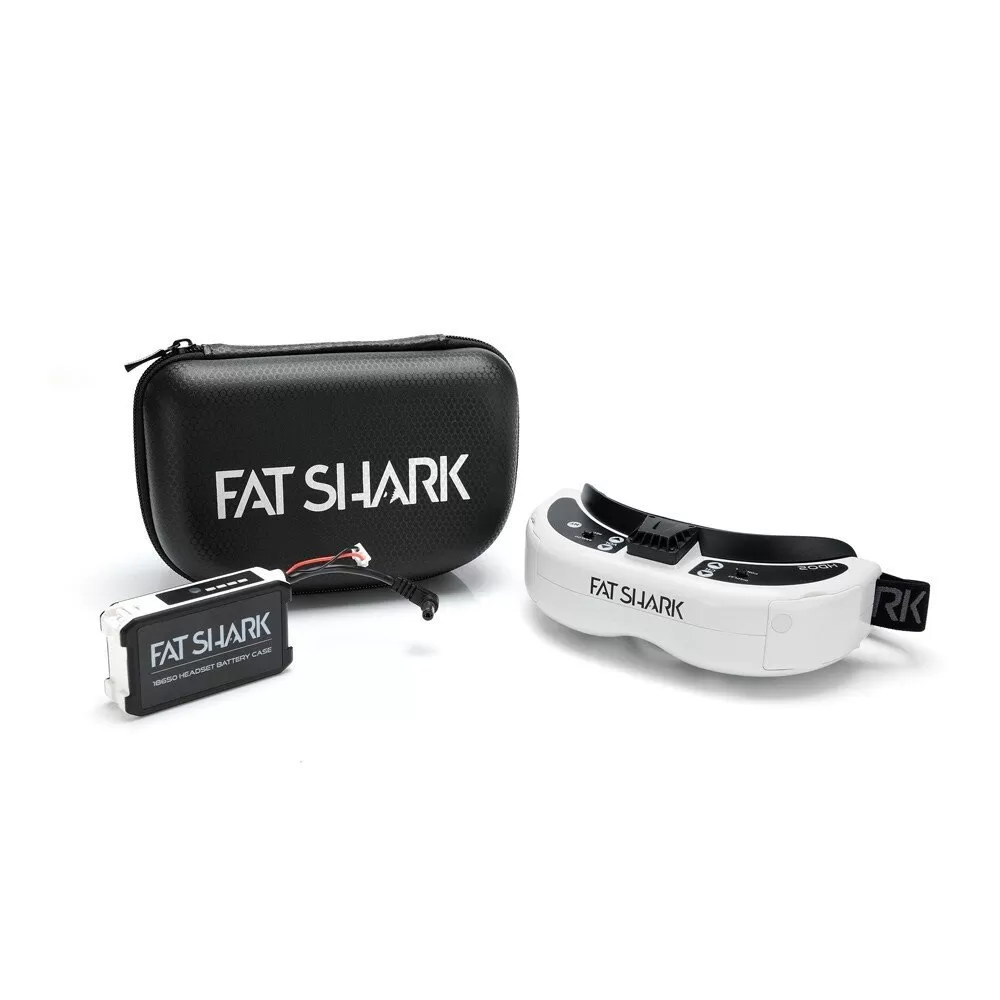

INCLUDES

1 x Fat Shark Dominator HDO 2.1 FPV Goggles

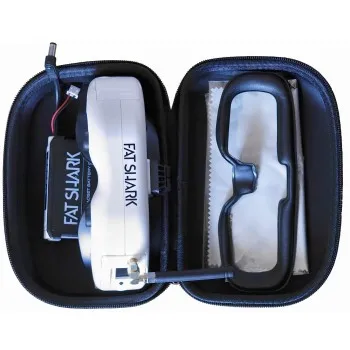

Carrying Case
7.4V 1865 Battery Case
Lens Cleaning Cloth
